PATENTED (2) PIECE TANGENTIALLY FIRED BURNER NOZZLE
Never have another nozzle fail from sigma phase or thermal distortion again
Patented (2) Piece T-Fired Burner Nozzle: Engineered for Maximum Durability & Thermal Stability
SAS Global Corporation's Patented Two-Piece Tangentially Fired Burner Nozzle is an advanced modernization solution designed to address premature nozzle deterioration in coal-fired power generation facilities.
Traditional burner nozzles operate under severe thermal conditions involving elevated temperatures, repeated heating and cooling cycles, abrasive coal particles, and demanding mechanical loads.
When nozzle components experience differential thermal expansion, rigid connections and constrained geometries can generate thermal stresses that contribute to distortion, cracking, misalignment, and premature component replacement.
An Innovative Two-Piece Design
The SAS Patented Two-Piece Burner Nozzle uses separate inner and outer housings engineered to accommodate independent thermal expansion and contraction.
Unlike rigidly connected assemblies, the SAS design incorporates a tapered mating interface and mechanical locking tabs that retain the inner housing while allowing the intended thermal movement.
Designed for Thermal Expansion Control
- Independent Expansion & Contraction – The outer and inner housings are not attached, allowing each component to expand and contract freely without creating internal stresses.
- Tapered Fit for Secure Assembly – Precision engineering ensures the inner housing slides smoothly into the outer housing, maintaining structural integrity while allowing thermal movement.
- Locking Tabs for Stability
– Prevents forward movement, securing the inner housing in place while enabling natural thermal expansion.
Customizable Material Options for Maximum Service Life
SAS Global offers a range of premium materials for both the outer housing and replaceable tip, allowing customization based on your specific operating conditions.
- Engineered for High-Temperature Applications
- Available in Multiple Alloys for Enhanced Wear Resistance
- Custom Material Selection Based on Fuel Type & Operating Conditions
By upgrading to SAS Global’s Patented (2)Piece T-Fired / Corner-Fired Burner Nozzle, plants eliminate premature failures, reduce maintenance costs, and achieve long-term reliability in high-temperature combustion environments.

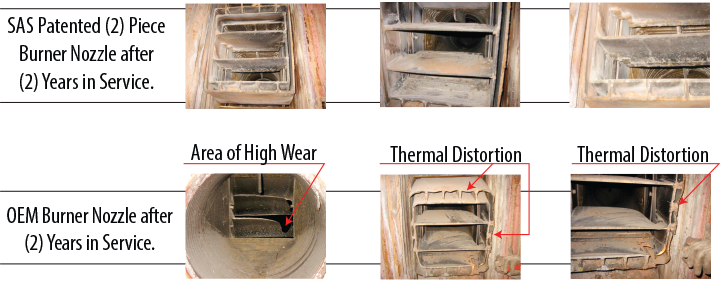

BURNER NOZZLE WEAR COMPARISON:
