HVT (HIGH VELOCITY THERMOCOUPLE) TESTING SERVICES

FURNACE TEMPERATURE MAPPING & COMBUSTION GAS TESTING


Identify the Current Combustion Status of Your Boiler

Why HVT Testing is Critical for Boiler Performance

High Velocity Thermocouple (HVT) Testing gives you a real-time, high-accuracy window into your boiler’s combustion conditions—right at the heart of the combustion zone. Unlike downstream testing methods, HVT provides data directly from the upper furnace, offering valuable insights that help optimize combustion, improve efficiency, and reduce emissions.


Measure Furnace Temperatures. Identify Combustion Imbalances. Optimize Boiler Performance.

SAS Global Corporation provides High Velocity Thermocouple (HVT) Testing Services for coal-fired electric power generation facilities seeking to evaluate furnace gas temperatures, identify combustion imbalances, and improve boiler operating reliability.

Coal-fired boiler combustion performance depends on proper fuel distribution, primary and secondary airflow, burner operation, and heat release throughout the furnace.


When these conditions become unbalanced, plants may experience uneven furnace temperatures, elevated CO or NOx emissions, slagging, high furnace exit gas temperatures, increased thermal exposure of downstream heating surfaces, and reduced operating efficiency.


SAS Global uses specialized water-cooled HVT testing probes to measure flue gas temperatures at selected locations within the upper furnace or furnace-exit region.


Advanced Furnace Temperature Testing

HVT testing provides point-by-point furnace gas temperature measurements through available boiler inspection and testing ports. By collecting measurements at established traverse locations, SAS Global can develop furnace temperature profiles showing how temperatures vary across the tested plane.


These results provide valuable information for evaluating furnace temperature asymmetry and investigating combustion-related operating concerns.


O₂, CO and NOx Combustion Gas Profiling

When HVT testing is combined with appropriate flue gas sampling and analysis instrumentation, SAS Global can also evaluate oxygen, carbon monoxide, and nitrogen oxide concentrations at selected furnace locations. These measurements complement the temperature data and help identify differences in combustion conditions across the tested furnace region.


Combined temperature and gas profiles can support the investigation of uneven air distribution, fuel-related imbalances, incomplete combustion, and other operating concerns.


What Does HVT Testing Reveal?

With a specialized HVT probe, SAS Global captures:

  • NOx and CO Profiles – Pinpoint emission levels and detect potential combustion inefficiencies.
  • Oxygen Profile & Levels – Identify areas of incomplete combustion or excessive air input.
  • Temperature Profile – Map temperature variations to detect uneven firing.
  • Flue Gas Temperatures – Monitor heat transfer effectiveness and potential fouling.
  • Fuel Imbalances – Diagnose uneven fuel distribution between burners.
  • Secondary Air Imbalances – Spot inconsistencies in air delivery that impact combustion efficiency.
  • Air Leakage Detection – Identify areas where excess air infiltrates the boiler, leading to higher-than-necessary O₂ levels and efficiency losses.


HVT Testing is an essential diagnostic tool that gives you the data-driven insights needed to optimize combustion, reduce emissions, and enhance overall boiler performance.


With SAS Global, you’re not just measuring performance—you’re engineering a smarter, cleaner, and more efficient future.

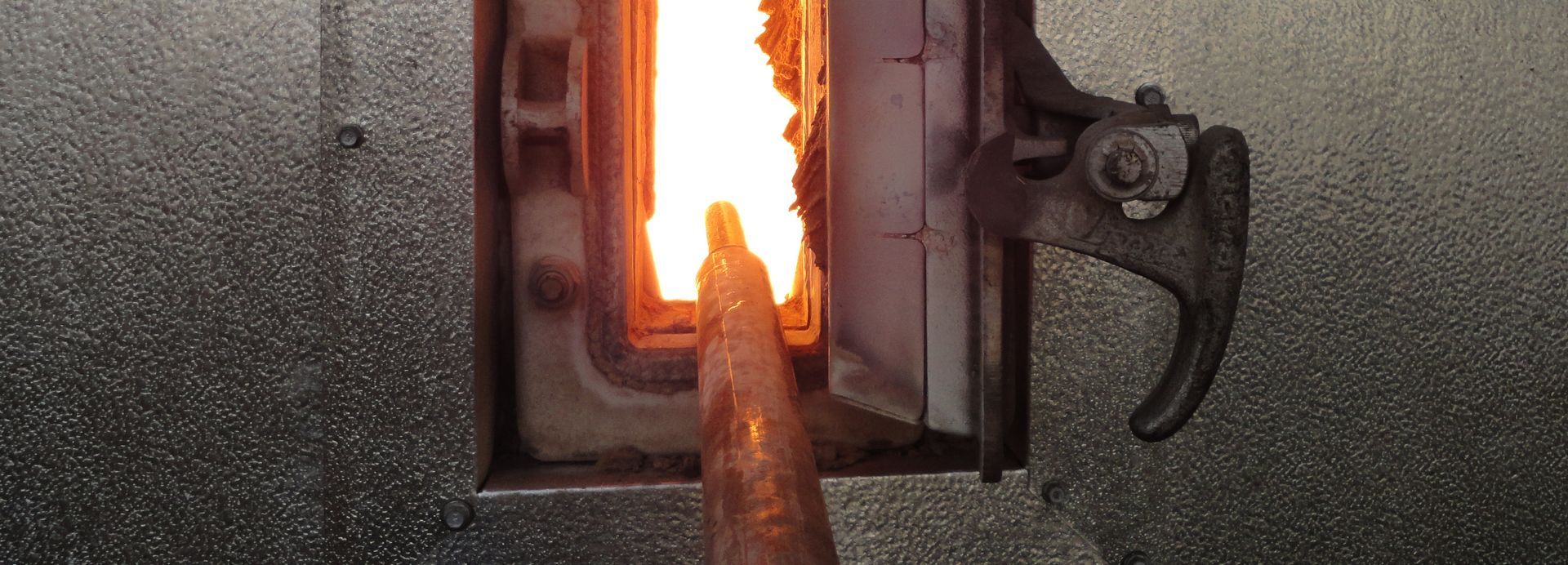

HVT High Velocity Thermocouple testing services - backpass emission testing

EXAMPLE DATA
With the utilization of water cooled probes flue gas profiles were obtained with HVT (High Velocity Thermocouple) traverses. HVT traverses were completed on the 40’ wide X 38’ deep upper furnace utilizing four (4) ports. The following graphs illustrates the testing grid on a plan view. Note data is collected on 2 foot increments.

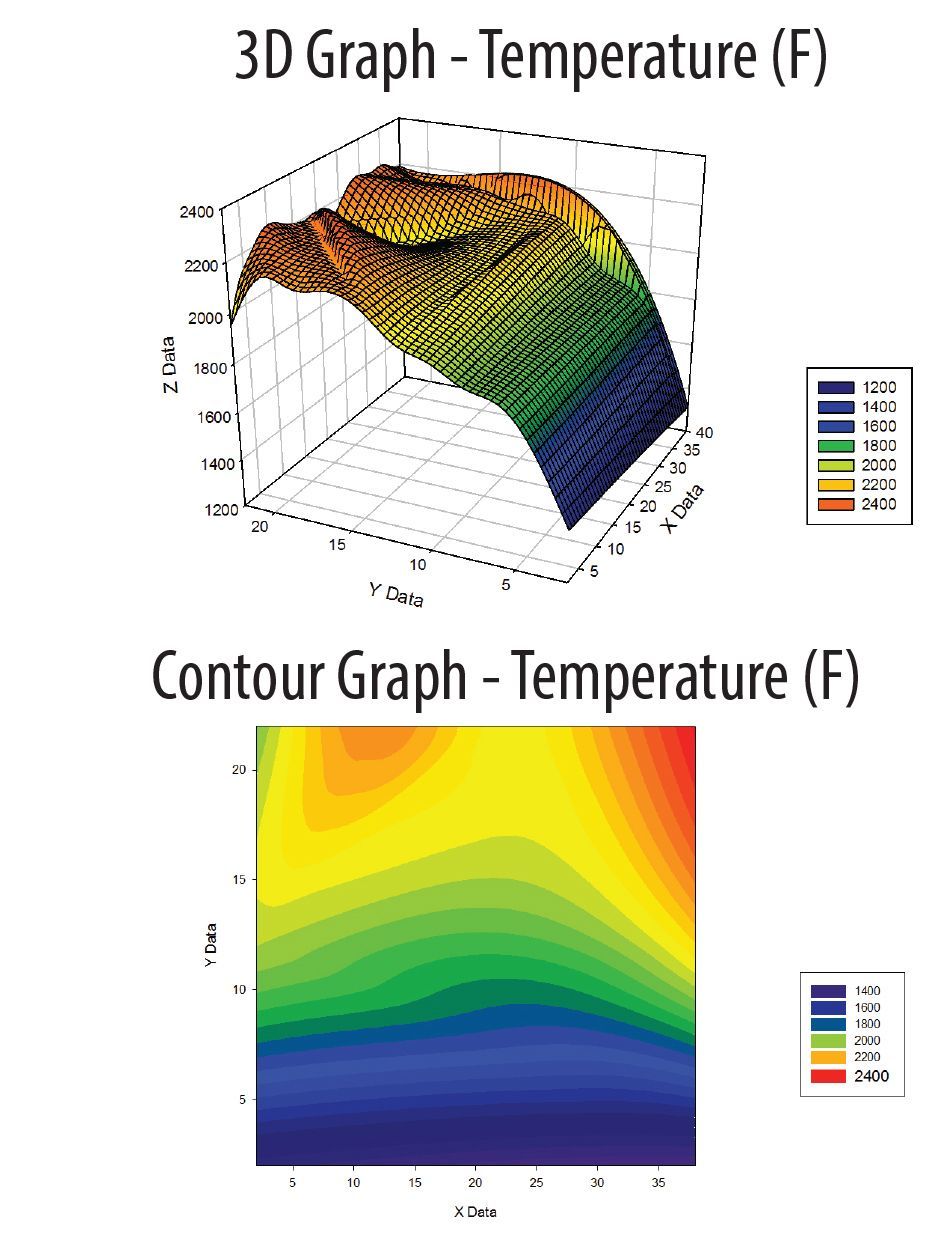

HVT testing - boiler backpass temperature map

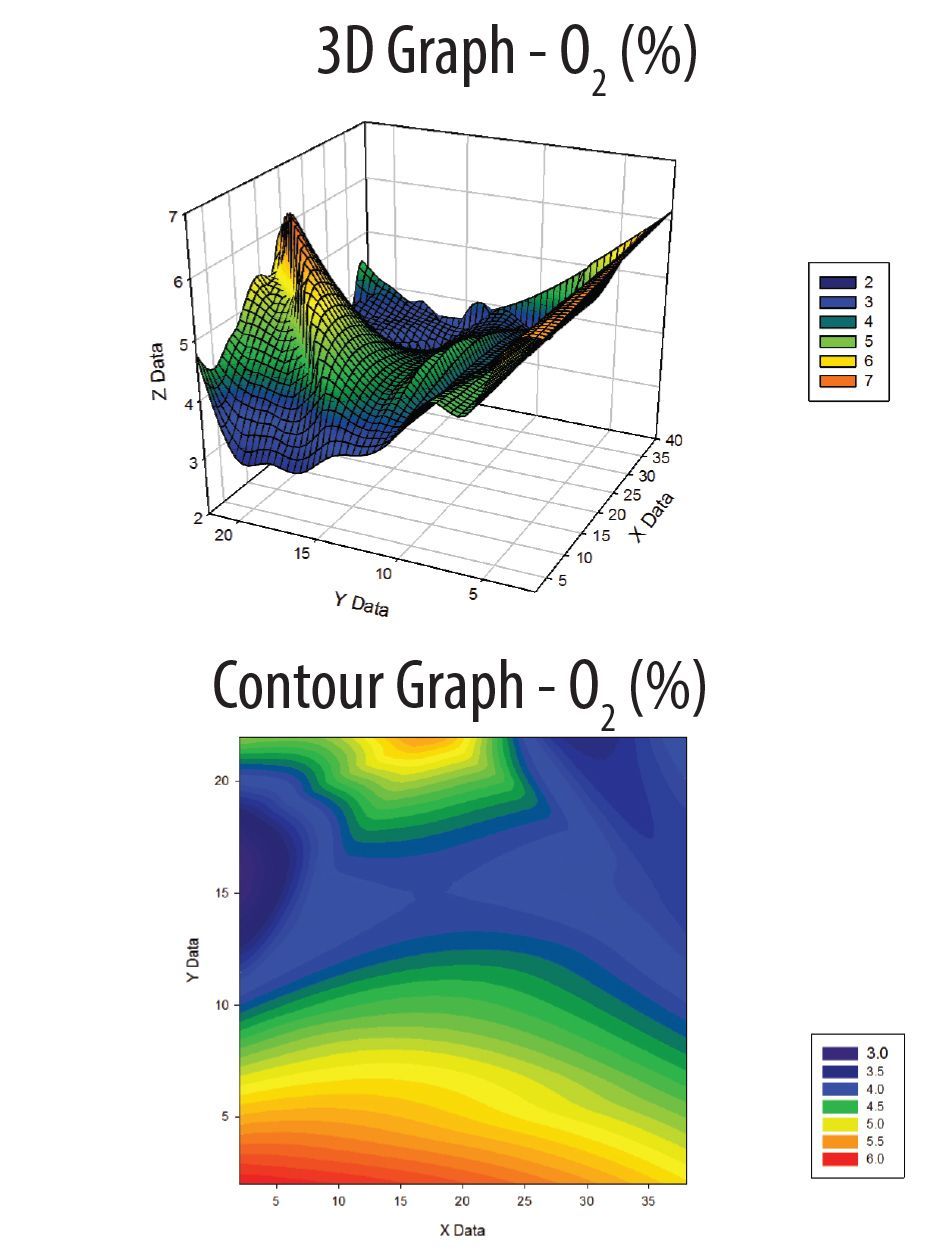

HVT testing - boiler backpass O2 map

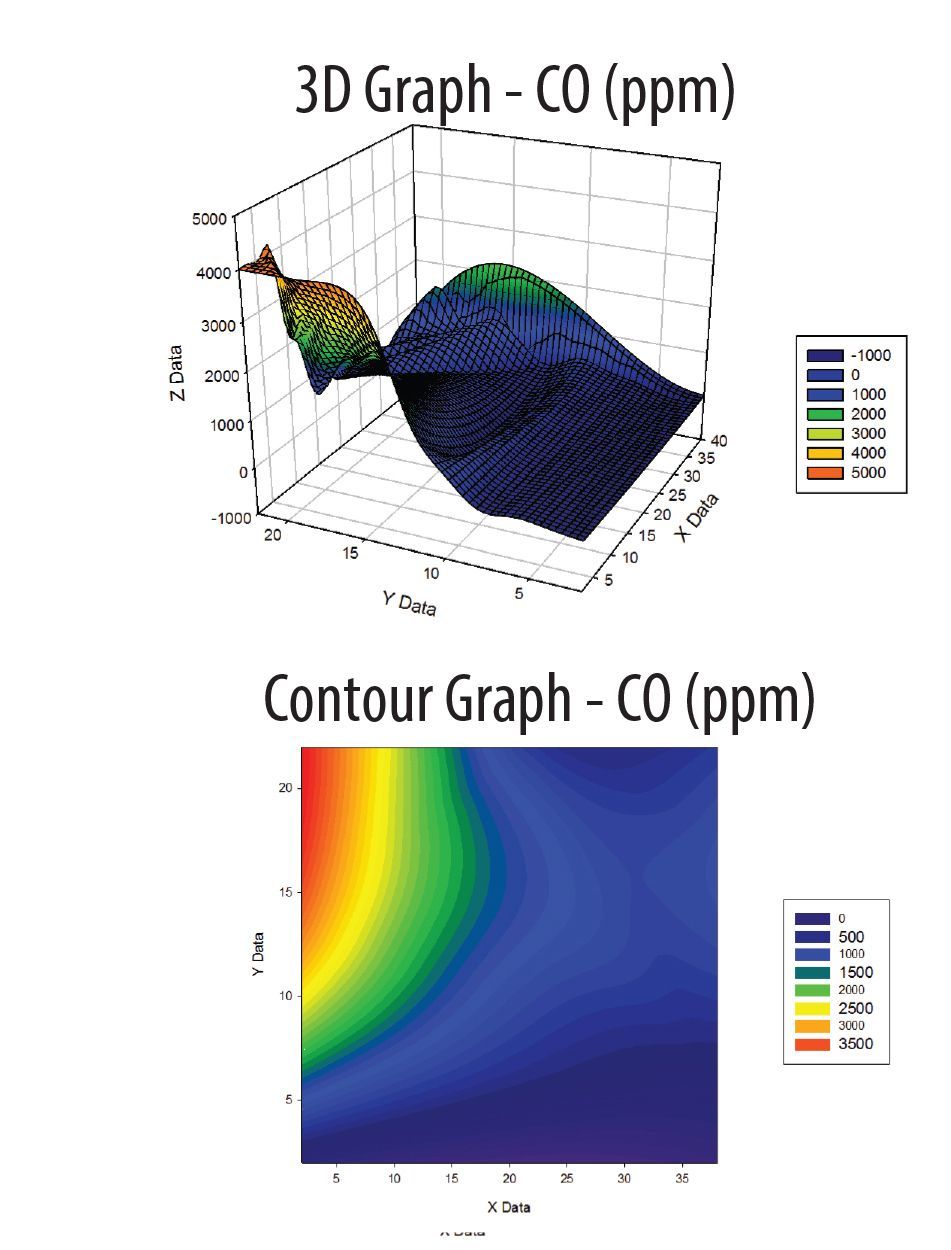

HVT testing - boiler backpass CO map

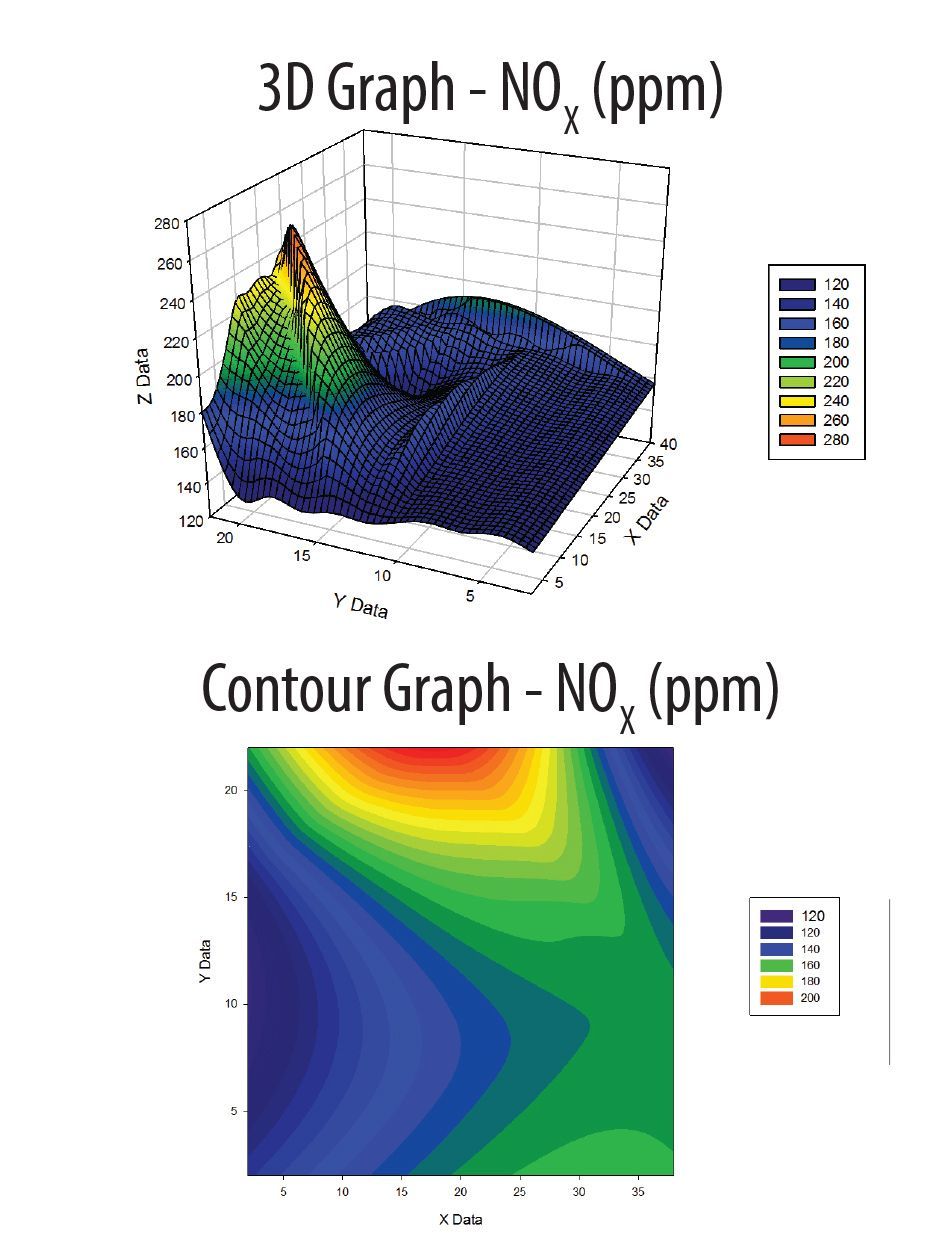

HVT testing - boiler backpass NOx  map
