ACFM (ADVANCED COAL FLOW MEASUREMENT)


100% Isokinetic Computer-Controlled Coal Pipe Extractive Testing

Measure Actual Coal Flow. Verify Primary Air Balance. Identify Combustion Performance Problems.

SAS Global Corporation provides Advanced Coal Flow Measurement (ACFM) Extractive Fuel Pipe Testing for coal-fired electric power generation facilities seeking to improve pulverizer performance, fuel distribution, and boiler combustion reliability.

Uneven pulverized coal distribution and improper primary airflow can significantly affect the fuel conditions delivered to individual burners. These problems may contribute to unstable combustion, increased loss on ignition (LOI), elevated emissions, furnace slagging, and reduced operating efficiency.


One of the challenges facing plant engineers is that balanced primary airflow does not necessarily mean balanced coal mass flow. Individual fuel pipes can carry significantly different quantities of pulverized coal even when measured airflow is relatively uniform.


Advanced Computer-Controlled Isokinetic Testing

The SAS Global ACFM system uses computer-controlled extractive sampling technology to evaluate coal and airflow conditions in individual pulverizer fuel pipes. The system adjusts its extraction rate during sampling to match the local gas velocity, supporting representative coal particle collection across the measured pipe velocity profile.


By combining coal extraction with dirty-air velocity measurements and supporting operating data, SAS Global provides quantitative information for evaluating fuel distribution and air-to-coal ratios.


How ACFM Ensures Accuracy

  • Dual-Probe Technology – Utilizes a dirty air probe for airflow measurement and three specialized coal sampling probes for fuel analysis.
  • Isokinetic Extraction Control – The system dynamically adjusts the extraction rate point-by-point to maintain 100% isokinetic conditions across the pipe velocity profile.
  • Strict Accuracy Standards – Each pipe is rigorously tested, ensuring measurement precision within ±3% for air and ±6% for coal. If results exceed these tolerances, the test is automatically restarted for uncompromised accuracy.


With ACFM, SAS Global delivers the highest level of coal flow measurement precision, helping plants enhance combustion performance, reduce emissions, and optimize fuel efficiency.

Special Features:

  • Fast and accurate test results
  • Self adjusts to extract 100% isokinetic
  • Fuel flows automatically moisture correct
  • Comprehensive report
  • Easy to understand data format
  • Rapid ROI of testing expenditure


Data Obtained:

  • Coal flow rate
  • Primary air flow
  • Primary air velocity
  • Primary air temperature
  • Air / coal ratio
  • Air velocity profile
  • Static & total pressures
  • Relative humidity
  • Dew point


Data Reported:

  • Coal & air flow rates
  • Coal pipe balance
  • Coal fineness
  • Air velocity profile
  • Comparison of measured flows to plant instrumentation
  • Suspected causes of problems
  • Recommendation

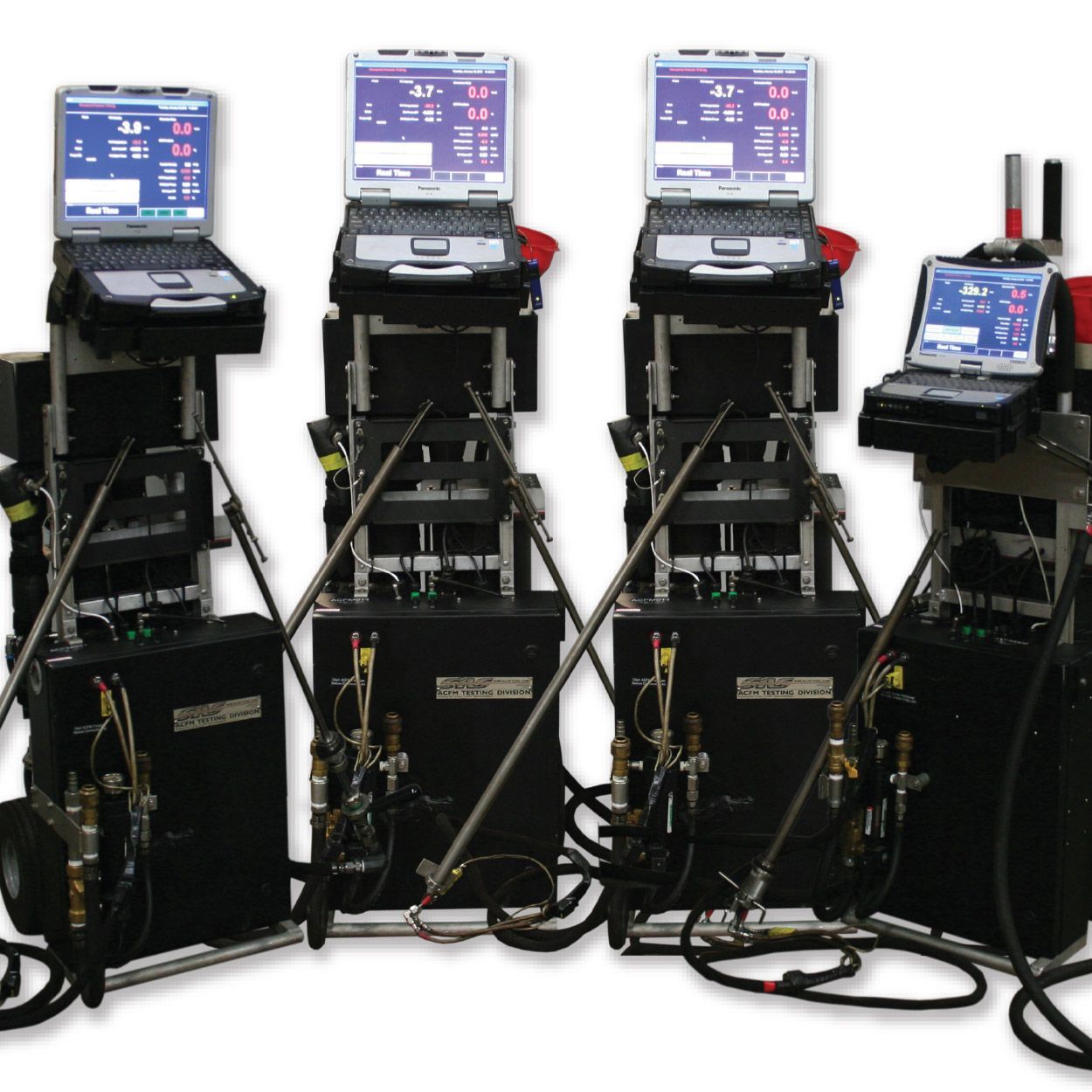

SAS ACFM Coal Pipe Testing


Types of Extractive Probes Used:

Depending on the testing situation, SAS can utilize different coal extracting probes to insure the best possible results. SAS Global utilizes (3) different style probes; an ASC Linear Probe, ASME Linear Probe, ASC Swivel Head Probe, or RotorProbe.

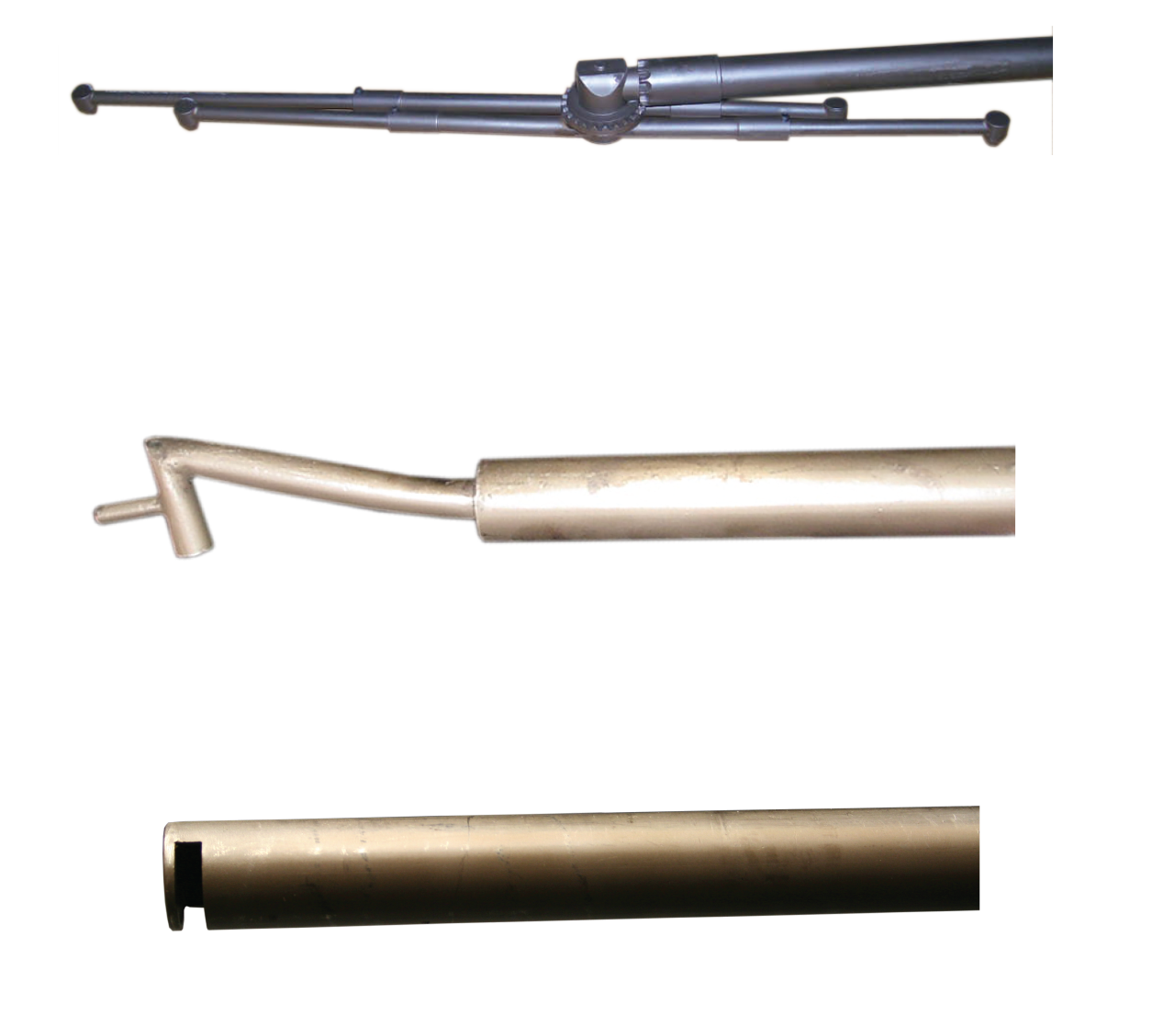

Coal Pipe Testing Probes

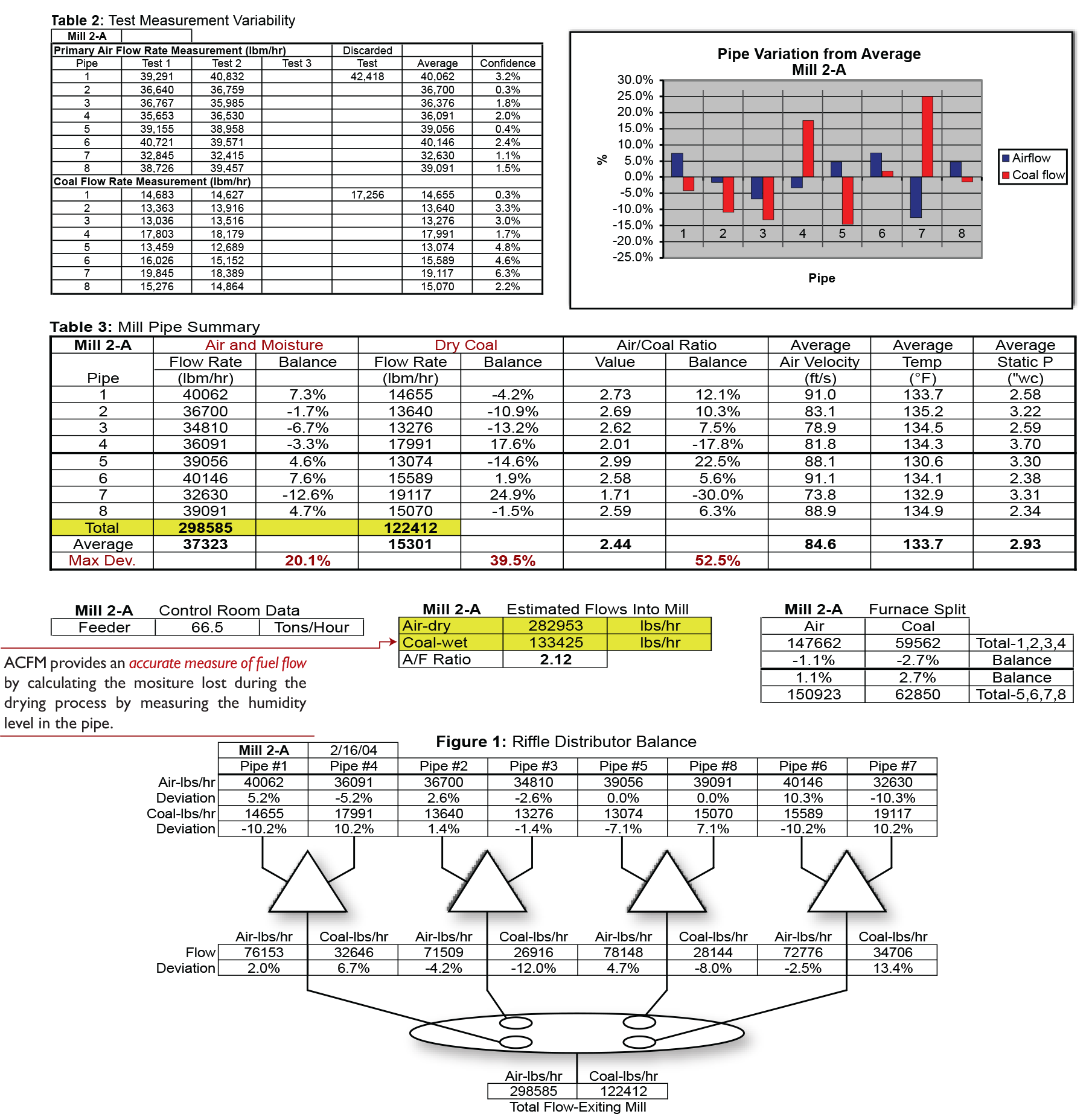

SAS ACFM Coal Pipe Testing Example Data
